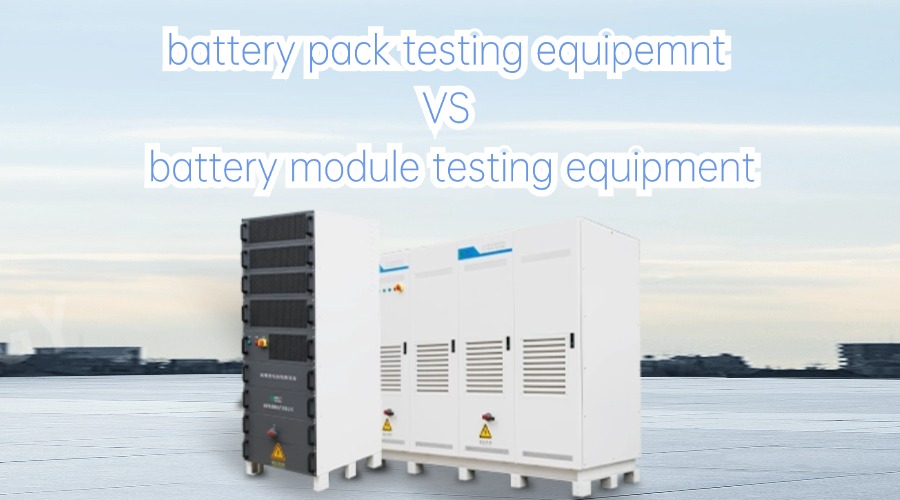

How to Choose Between Pack Battery Testing Equipment and Module Charge/Discharge Testing Equipment?

When choosing between Pack battery testing equipment and module battery testing equipment, the decision primarily depends on the type of test subject, application scenario, and testing requirements.

Here are some guidelines to help select the appropriate equipment:

1. Test Subject

Pack Battery Testing Equipment: Designed for testing the entire battery pack, which includes multiple modules and a Battery Management System (BMS). Suitable for large-scale applications such as electric vehicles and energy storage systems.

Module Battery Testing Equipment: Used for testing individual battery modules, with each module consisting of multiple cells. Typically used for development and validation testing of battery modules or pre-testing before full pack testing.

2. Testing Projects and Requirements

Voltage and Current Requirements:

Pack Battery Testing: Usually involves higher voltage (hundreds to thousands of volts) and larger current (hundreds of amperes). High-power testing equipment is required.

Module Testing: Generally suitable for lower voltage (tens to hundreds of volts) and smaller current (tens to hundreds of amperes).

Testing Content:

Pack Testing: Includes overall pack charge/discharge performance, balancing, temperature control, thermal management, short circuit protection, etc.

Module Testing: Focuses on individual module charge/discharge performance, cell consistency, cycle life, etc.

Accuracy Requirements:

Module Testing: Typically demands higher accuracy because it involves detailed analysis of individual cell characteristics and consistency.

Pack Testing: Primarily concerns overall performance, so the power characteristics and stability of the equipment are more important.

3. Testing Environment and Safety

Pack Battery Testing: Due to the higher number of cells and voltage, more stringent safety measures are required, such as insulation protection, fire protection systems, and temperature control systems.

Module Testing: Simpler compared to pack testing but still requires precautions against battery thermal runaway and short-circuit risks.

4. Equipment Selection Recommendations

Module Testing Equipment: Suitable for detailed testing and analysis of cells and modules during the R&D phase or small-scale production.

Pack Testing Equipment: Ideal for performance testing after mass production, vehicle integration testing, and comprehensive validation testing.

5. Equipment Configuration and Selection

Voltage and Current Range: Choose according to the nominal voltage and maximum current of the battery pack or module.

Channel Count: Single-channel for individual pack or module testing; multi-channel for parallel testing of multiple modules.

Power and Accuracy: Select equipment with the appropriate power level based on the testing needs and pay attention to the measurement accuracy of the equipment.

6. Cost and Budget

Module Testing Equipment: Relatively lower cost, suitable for initial testing and R&D.

Pack Testing Equipment: Higher cost due to greater power requirements and complex configurations, so budget considerations are important.

Conclusion

For detailed testing of electrical performance, cycle life, and cell consistency of individual modules, choose module testing equipment. For performance, thermal management, and BMS testing of the entire battery pack, opt for pack battery testing equipment. The final choice should be made based on the battery system specifications, testing requirements, and budget.
